WUFAC Technical Information

The Wayland Union Fine Arts Center is available to rent for performances, corporate events, and non-profit meetings!  We also have our own in-house catering available for anything from cookies and punch to a full sit down reception.

Contact the Fine Arts Center Director for more information...

Technical Specifications

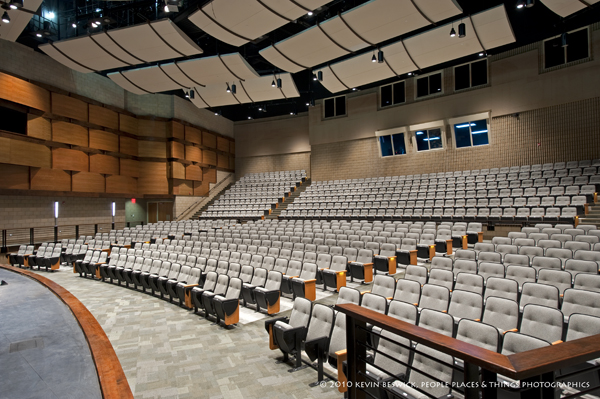

House Information
Seating Capacity:
-Orchestra section - 387
-Arena section - 413
-Total - 800
(There are 49 optional removable seats throughout the Orchestra section for additional handicap seating, with 4 rows house right removed as "pit")

House Policies:
-As the Wayland Union Fine Arts Center is on Wayland Union Schools property, use of any tobacco/vape or alcoholic products is prohibited by law, in the Center and on any District property.
-Lobby doors open 60 minutes prior to event.
-House doors open 30 minutes prior to event.
-No flash photography or filming allowed in the auditorium (unless permission given by FAC Director)
-No food or drink allowed in the Auditorium.

Stage Information
Stage Dimensions:
-Proscenium width - 50'
-Proscenium height - 22'
-Stage depth from plaster line - 35' 8"
-Full stage depth - 45' 8"
-Full stage width - 96' 5"
-SL Wing (from proscenium edge to wall) - 50'
-SR Wing (from proscenium edge to fly rail) - 46'5"

Fly System:
-Type - Single Purchase System, Modified Full Fly
-Number of sets - 25
     1 - Valance (25 oz. Black Velour, 4 pieces - 16' X 8' each)
     2 - Main Traveler (25 oz. Black Velour, 2 pieces - 33' X 22' 6" each)
     4 - Electric #1
     6 - Border #1 (21 oz. Black Velour, 4 pieces - 18'3" X 8')
     7 - Leg #1 (21 oz. Black Velour, 2 pieces - 20' X 19'6")
     8 - Open (Cyclorama position for movie projection)
     10 - Downstage Acoustic Shell Ceiling
     13 - Border #2 (21 oz. Black Velour, 4 pieces - 18'3" X 8')
     14 - 1st (Downstage) Traveler (21 oz. Black Velour, 2 pieces - 37'6" X 19'6")
     16 - Electric #2
     18 - Open
     19 - Open
     21 - Mid Stage Acoustic Shell Ceiling
     23 - Border #3 (21 oz. Black Velour, 4 pieces - 18'3" X 8')
     24 - 2nd (Mid-stage) Traveler (21 oz. Black Velour, 2 pieces - 37'6" X 19'6")
     26 - Open
     28 - Scrim (Black Sharkstooth, 62' X 21')
     32 - Upstage Acoustic Shell Ceiling
     34 - Border #4 (21 oz. Black Velour, 4 pieces - 18'3" X 8')
     35 - Leg #2 (21 oz. Black Velour, 2 pieces - 20' X 19'6")
     37 - Electric #3
     43 - Border #5 (21 oz. Black Velour, 4 pieces - 18'3" X 8')
     45 - 3rd (Upstage) Traveler (21 oz. Black Velour, 2 pieces - 37'6" X 19'6")
     46 - Cyclorama (62' X 21')
     47 - Open
-Each batten is 1 1/2" schedule 40 pipe with a length of 73'
-Non-electric batten low trim is 3' with a travel of 40'9"
-Electric batten low trim is 4' with a travel of 39'9"

Audio/Visual/Lighting Information
House Sound:
-Left and Right Line Array System
    4 - EAW JFL210 Line Array Speaker (each side)
    1 - EAW JFL118 18' Subwoofer (each side)
-Allen & Heath SQ-7 Digital Mixing Console
    40 - Direct input channels (36 input channels available via digital snake "S-Link" backstage)
    4 - Stereo inputs (1 via USB)
Lighting:
-ETC Ion XE Console
-ETC Source 4:
     6 - 10 Degree (Spot booth location in rep.)
     25 - 19 Degree (5 extra lens tubes)
     21 - 26 Degree
     1 - 36 Degree (lens tube)
     10 - 50 Degree
     5 - 25-50 Degree Jr. Zoom
     26 - PAR (Very Narrow Spot, Narrow Spot, Medium & Wide Flood Lenses are available)
